Name: Automated Checkweighing System for food industry
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Gıda endüstrisi için Otomatik Tartım Kontrol Sistemi
Availability: InStock

Ana sayfa Ürünler Otomatik Kontrol Terazisi

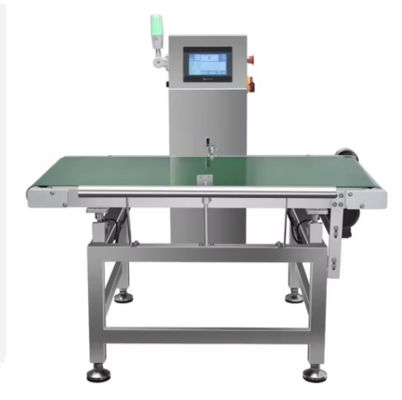

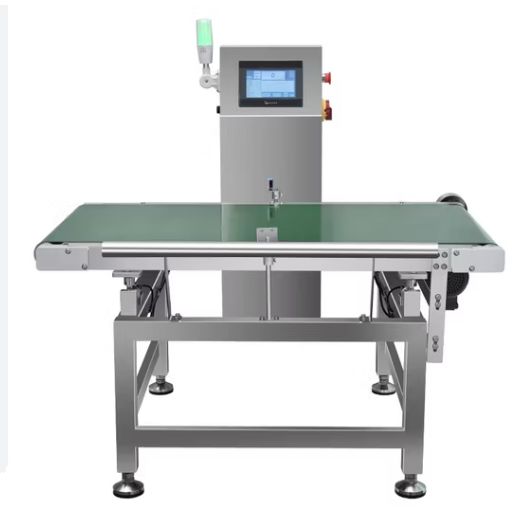

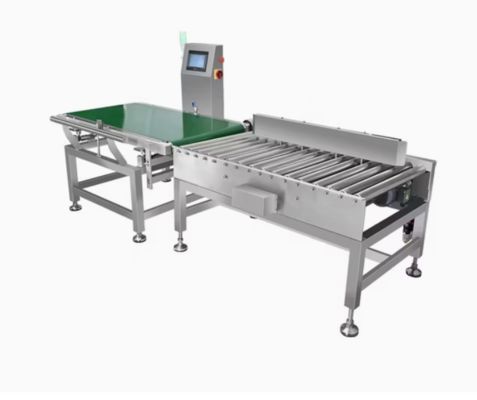

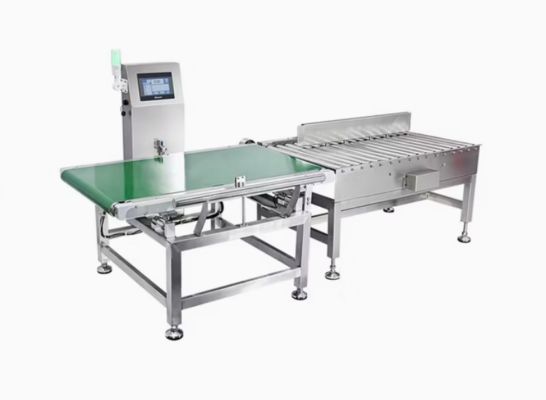

Automated Checkweighing System for food industry

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Model numarası:	Gıda endüstrisi için Otomatik Tartım Kontrol Sistemi

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	Caron kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Set

İletişim

Detaylı ürün tanımı

Product:	Automated Checkweighing System for food industry	Max Capacity:	1 kg, 5 kg, 20 kg
Readability / Graduation:	0.1 g, 0.5 g, 1 g	Throughput:	100 ppm (products per minute), 300 ppm, 600+ ppm
Accuracy:	±0.1 g to ±2 g	Conveyor Speed:	10-100 m/min
IP Rating:	IP65, 67,68	Belt Dimensions:	Varies by product size.
Reject Mechanism:	Air-jet, pusher, drop flap, diverter	Operating Interface:	Touchscreen HMI (Human-Machine Interface)
Connectivity:	Ethernet, USB, RS-232	Construction Material:	Stainless steel (SS304, SS316)
Dynamic Weighing Range:	Typically a percentage of the max capacity.
Vurgulamak:	automated checkweighing system for food , Mettler Toledo load cell checkweigher , food industry checkweighing system

Automated Checkweighing System for Food Industry

An Automated Checkweighing System is an essential piece of equipment in the food industry, designed to weigh products with high speed and precision as they move along a production line. This system is crucial for ensuring product quality, adhering to strict regulatory standards, and maximizing production efficiency.

Key Functions and Benefits

Ensuring Product Quality and Consistency: Maintains consistent product weight, preventing both underfilled and overfilled packages. Underfilling can lead to customer dissatisfaction and legal issues, while overfilling results in financial losses.
Compliance with Regulatory Standards: Essential for meeting food labeling laws that require accurate net weight. Provides digital audit trails and real-time data to prove compliance with legal requirements.
Production Line Integration: Seamlessly integrates into high-speed food production lines after filling or packaging stages. Can be linked with other quality control equipment like metal detectors and X-ray systems.

Technical Specifications

Parameter	Specification
Max Capacity	1 kg, 5 kg, 20 kg
Readability / Graduation	0.1 g, 0.5 g, 1 g
Throughput	100 ppm, 300 ppm, 600+ ppm
Accuracy	±0.1 g to ±2 g
Conveyor Speed	10-100 m/min
IP Rating	IP65, 67, 68
Belt Dimensions	Varies by product size
Reject Mechanism	Air-jet, pusher, drop flap, diverter
Operating Interface	Touchscreen HMI
Connectivity	Ethernet, USB, RS-232
Construction Material	Stainless steel (SS304, SS316)

Etiket:

İlgili kişi: Mrs. Shirley

Tel: +86-15851932889

Faks: 86-519-68781609
