Name: Checkweigher Combinations with Vision Systems
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Checkweigher Combinations with Vision Systems
Availability: InStock

Ana sayfa Ürünler Otomatik Kontrol Terazisi

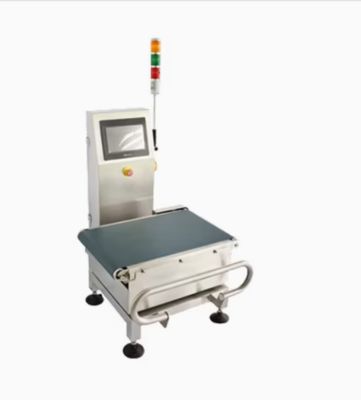

Checkweigher Combinations with Vision Systems

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Model Number:	Checkweigher Combinations with Vision Systems

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Packaging Details:	Caron box
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Set

İletişim

Detaylı ürün tanımı

Ürün:	Görme sistemleri ile kombinasyonları kontrol edin	Kameralar:	2-8x Endüstriyel CMOS (5-20MP)
Optik:	Telekentrik lensler (0.1-0.5x büyütme)	aydınlatma:	Çok açılı LED dizileri (RGB/W/UV/IR)
Kare oranı:	300 fps'ye kadar (ürün bağımlı)	Çözünürlük:	0.001g
Boyutsal ölçüm:	± 0.05mm	Renk doğrulama:	150ppm
Yüzey kusurları:	0.1mm kusurlar	Etiket Doğrulama:	300ppm
Varlık/yokluk:	500ppm	Kapasite:	0.1g-25kg
Kesinlik:	±% 0.05 FS	hız:	600 ppm'ye kadar
Vurgulamak:	Mettler Toledo checkweigher with X-ray , checkweigher inspection combination load cell , X-ray inspection checkweigher

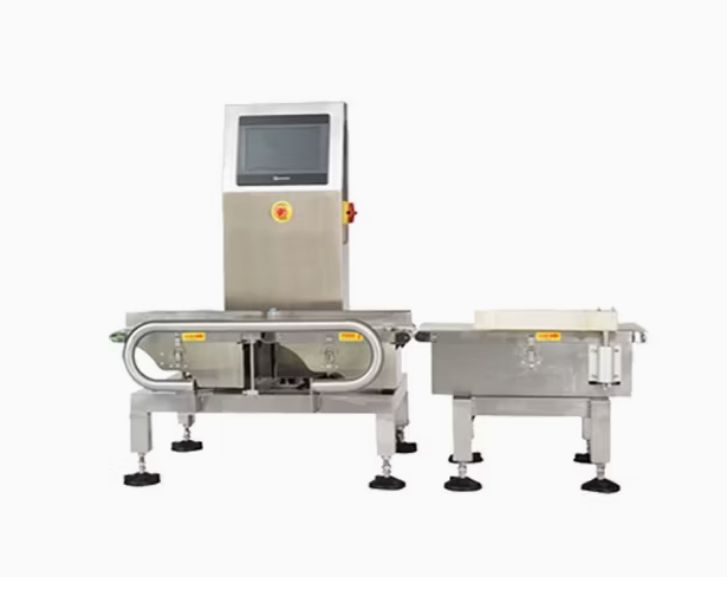

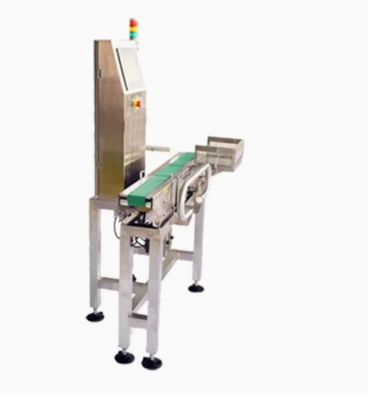

Checkweigher Combinations with Vision Systems

Key Specifications

Attribute	Value
Cameras	2-8x industrial CMOS (5-20MP)
Optics	Telecentric lenses (0.1-0.5X magnification)
Lighting	Multi-angle LED arrays (RGB/W/UV/IR)
Frame Rate	Up to 300fps (product-dependent)
Resolution	0.001g
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
Capacity	0.1g-25kg
Accuracy	±0.05% FS
Speed	Up to 600ppm

System Overview

This advanced system combines high-precision dynamic weighing with multi-camera vision inspection for comprehensive quality control.

Machine Architecture

Modular Design: Integrated weighing and vision inspection system
Structural Components:
- Aluminum/stainless steel hybrid frame (Grade 304)
- Compact footprint: 1800(L) × 800(W) × 1400(H) mm
- IP65-rated enclosure (IP69K optional)
- Transparent safety guards with interlock switches

Material Flow Configuration

Infeed Section:
- Servo-driven belt conveyor (5-80 m/min)
- Product singulation system
- Barcode/RFID reader integration point
Inspection Zone:
- High-resolution vision tunnel
- Precision load cell weighing platform
- Multi-spectrum lighting array
Outfeed Section:
- Smart rejection system with 4-way sorting
- Verification sensors for quality tracking

Vision System Specifications

Parameter	Specification
Resolution	0.05mm/pixel at 50m/min
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
