Name: 100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Yük hücresi mt1241-100kg 2m
Availability: InStock

Ana sayfa Ürünler

100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Yük hücresi mt1241-100kg 2m

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	220 lb (100 kg)
Malzeme:	Alüminyum, pasifleştirilmiş	metroloji:	NTEP III 5.000d OIML C3
Doğruluk:	Standart	Koruma derecesi:	IP67
Platform Boyutu (LXW):	400 mm x 400 mm	Bağlantı:	Analog
kablo:	2 m (2 m)
Vurgulamak:	100kg load cell with 2m cable , precision industrial weight sensor , Mettler Toledo load cell with warranty

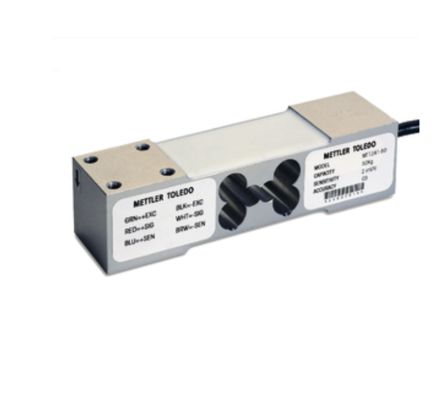

100kg Load Cell MT1241 with 2m Cable – Precision Industrial Weight Sensor

Key Features

High-performance single point load cell with off-center compensation
Aluminum construction with passivated finish for durability
IP67 protection rating for harsh industrial environments
Includes ATEX Zone 1/21/2/22 approvals for hazardous areas
Metrology approvals: NTEP III 5,000d and OIML C3

Product Description

The MT1241 compression weigh module is designed for industrial weighing applications where its top plate and base plate are compressed when weight is applied. This load cell can be directly attached to the ground, piers, or structural beams, making it ideal for platform scales, tank weighing, hopper systems, and silo applications.

With a capacity range from 3 kg to 300 tons, these load cells are particularly suited for mid-size platforms. The MT1241 model features reliable strain gauge technology using premium aluminum materials to ensure long-term performance and accuracy.

Technical Specifications

Attribute	Specification
Product	Mettler Toledo Load Cell
Maximum Capacity	220 lb (100 kg)
Material	Aluminum, passivated
Material Number	71207453
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	6.6 ft (2 m) PVC
