Name: MT1041 75kg Load Cell – Robust Weight Sensor with 6 Meter Wire
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Yük Hücresi MT1041-75kg 6m
Availability: InStock

Ana sayfa Ürünler

MT1041 75kg Load Cell – Robust Weight Sensor with 6 Meter Wire

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Yük Hücresi MT1041-75kg 6m

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	196 lb (75 kg)
Malzeme:	Alüminyum, pasifleştirilmiş	metroloji:	NTEP III 5.000d OIML C3
Doğruluk:	Standart	Koruma derecesi:	IP67
Platform Boyutu (LXW):	400 mm x 400 mm	Bağlantı:	Analog
kablo:	20 ft (6 m)
Vurgulamak:	MT1041 75kg load cell , robust weight sensor with wire , Mettler Toledo load cell sensor

MT1041 75kg Load Cell – Robust Weight Sensor with 6 Meter Wire

A compression weigh module designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing.

Product Attributes

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	196 lb (75 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	20 ft (6 m)

Key Features

For Mid Size Platforms

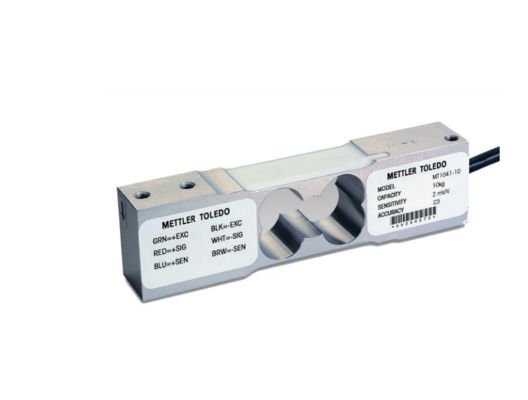

The MT1041 is a high performance single point load cell. The load cell is off-center compensated, enabling it to cope with platform moments. Metrology approvals include OIML as standard.

Reliable Strain Gage Technology

Usage of premium aluminum materials and strain gage technology guarantees long-term durability.

Hazardous Area Usage

ATEX Zone 1/21/2/22 approvals as standard. No need to ask for options or stock variations - one fits all applications.

Technical Specifications

Material: Aluminum, passivated

Material No: 72208504

Maximum Capacity: 196 lb (75 kg)

Protection Rating: IP67

Connectivity: Analog

Cable: PVC, 20 ft (6 m)

Platform Size (LxW): 400 mm x 400 mm

Accuracy: Standard

Metrology: NTEP III 5,000d, OIML C3
