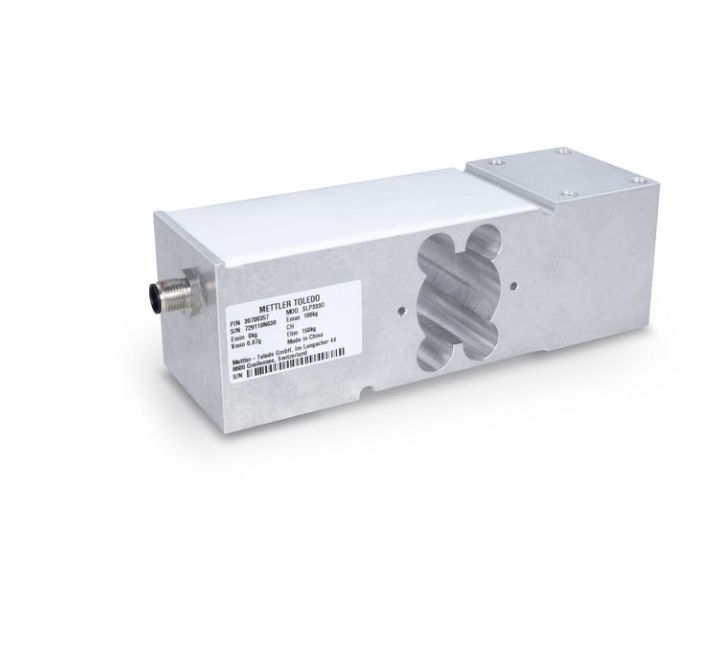

Name: SLP333D-IOL Load Cell – 50kg C6/9k IO-Link Digital Weighing Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Yük hücresi SLP33D-Iol-50kg C6/9K
Availability: InStock

Ana sayfa Ürünler

SLP333D-IOL Load Cell – 50kg C6/9k IO-Link Digital Weighing Sensor

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Yük hücresi SLP33D-Iol-50kg C6/9K

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	110 lb (50 kg)
Malzeme:	Alüminyum, pasifleştirilmiş	metroloji:	NTEP III 10.000d OIML C6
Doğruluk:	Standart	Koruma derecesi:	IP67
Tehlikeli onay:	ATEX, FM	Kritiklik:	Standart
Platform Boyutu (LXW):	600 mm x 600 mm	Bağlantı:	Birleşik
Vurgulamak:	50kg digital load cell , IO-Link weighing sensor , Mettler Toledo load cell

SLP333D-IOL Load Cell – 50kg C6/9k IO-Link Digital Weighing Sensor

Product Attributes

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110 lb (50 kg)
Material	Aluminum, passivated
Metrology	NTEP III 10,000d OIML C6
Accuracy	Standard
Protection Rating	IP67
Hazardous Approval	ATEX, FM
Criticality	Standard
Platform Size (LxW)	600 mm x 600 mm
Connectivity	Integrated

Product Description

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Single Point Load Cell for Automation with IO-Link interface SLP333D-RTU 50kg C6

Integrated PLC connectivity: The SLP33xD-IOL load cells connect directly to any automation systems via IO-Link, no additional electronic unit is needed.
Quick installation: Standard cables and connectors reduce complexity for installation. Accurate factory calibration allows immediate startup.
Smart5 ™ alarms and condition monitoring: With continuous condition monitoring and alarms according to NAMUR NE 107 higher machine uptime and increased productivity achieved.

Specifications

Material	Aluminum, passivated
Material No	30786466
Maximum Capacity	110 lb (50 kg)
Protection Rating	IP67
Connectivity	Integrated
Hazardous Approval	ATEX FM
Platform Size (LxW)	600 mm x 600 mm
Accuracy	Standard
Metrology	NTEP III 10,000d OIML C6
