Name: SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modül SWB805 316 4.4T/10K C1
Availability: InStock

Ana sayfa Ürünler

SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Modül SWB805 316 4.4T/10K C1

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	500 lb (220 kg)
Malzeme:	304 paslanmaz çelik	metroloji:	OIML C3, NTEP III 5M
Yük hücresi:	SLB815	Doğruluk:	Standart
Koruma derecesi:	IP68/69K	Çevre / Malzeme:	Sık yıkama / hijyenik
Tehlikeli onay:	Atex, FM, CFM	Kritiklik:	Standart
kablo:	5 milyon
Vurgulamak:	stainless steel weigh module , 500lb load cell sensor , Mettler Toledo load cell

SWB805 SS Weigh Module – 220kg/500lb Load Cell C3 Stainless Steel Sensor

Certified Hygienic Solution

Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.

Reduced Cleaning Time

Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.

Easy to integrate

Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, eliminating contamination risks.

Product Description

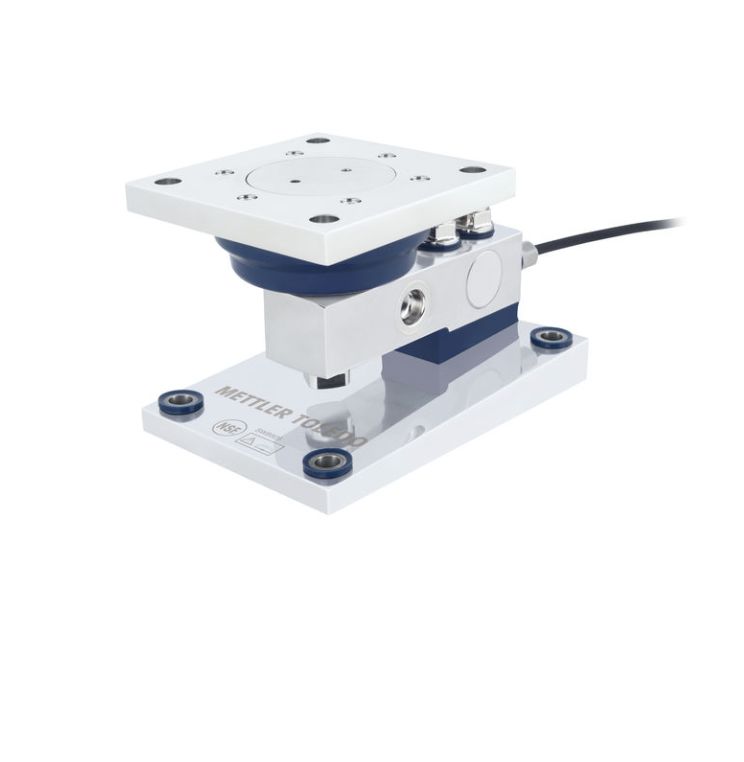

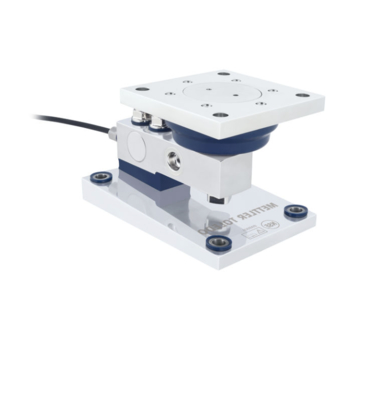

A compression weigh module designed so that its top plate and base plate compress when weight is applied. It can be attached directly to the ground, piers, or structural beams. These modules are typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	500 lb (220 kg)
Material	304 Stainless steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB815
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Frequent wash-down / Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	5 m
