Name: 1250kg Capacity SWB220 Stainless Steel Load Cell with Industrial Weighing Module
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modül SWB220 SS 1.25K
Availability: InStock

Ana sayfa Ürünler

1250kg Capacity SWB220 Stainless Steel Load Cell with Industrial Weighing Module

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Modül SWB220 SS 1.25K

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	550 kg/1.250 lb
Malzeme:	304 paslanmaz çelik	metroloji:	OIML C3, NTEP III 5M
Yük hücresi:	SLB515	Doğruluk:	Standart
Koruma derecesi:	IP68/69K	Çevre / Malzeme:	Yıkama / paslanmaz çelik
Tehlikeli onay:	Atex, FM, CFM	Kritiklik:	Standart
kablo:	16.4 ft (5 m)
Vurgulamak:	1250kg stainless steel load cell , industrial weighing module load cell , Mettler Toledo SWB220 load cell

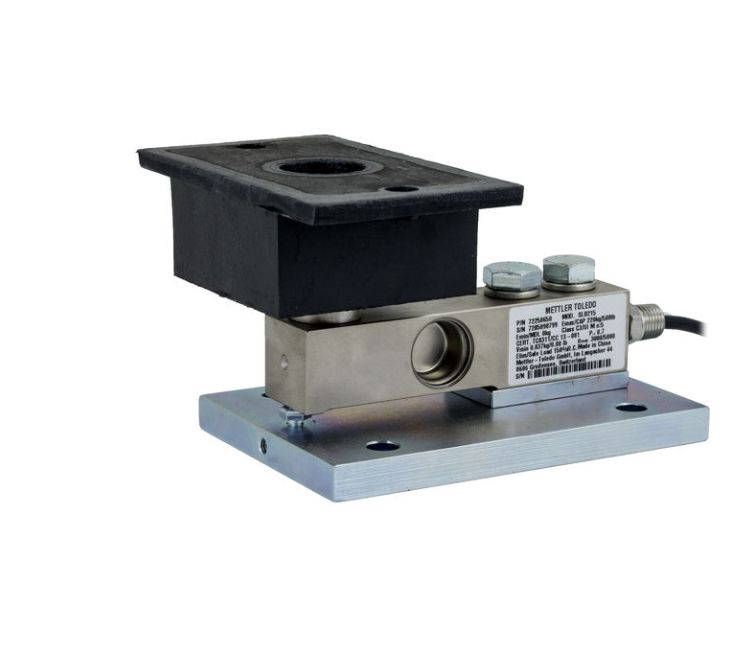

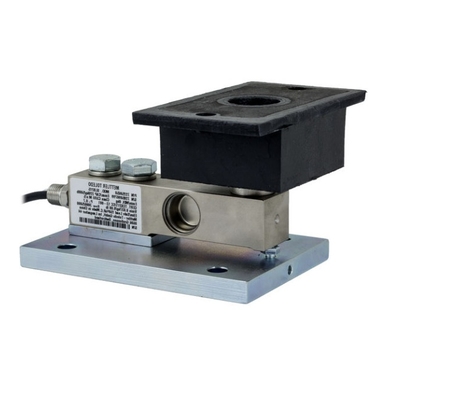

1250kg Capacity SWB220 Stainless Steel Load Cell with Industrial Weighing Module

A compression weigh module designed for industrial applications where its top plate and base plate are compressed when weight is applied. This module can be directly attached to the ground, piers, or structural beams. Ideal for use in multiples under large platform scales such as truck and railroad track scales, as well as tank, hopper, and silo weighing systems. Capacity ranges from 3 kg to 300 tons.

Economical Weighing Solution

SWB220 Weigh Modules are suitable for general purpose static weighing of OEM machinery, conveyors, tanks and hoppers with limited lateral movement.

Multi-purpose: Fits a wide range of general weighing applications

Built-in Overload Stop: Prevents damage to load cell sensor

Elastomeric Compression Mount: Upper load receiver with neoprene covered steel insert provides isolation from vibration

Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	550 kg/1,250 lb
Material	304 Stainless steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB515
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	16.4 ft (5 m)
