Name: 100 Ton SWC415 PM Stainless Steel Load Cell Module for Industrial Weighing Solution
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modül SWC515 SS 100T tart
Availability: InStock

Ana sayfa Ürünler

100 Ton SWC415 PM Stainless Steel Load Cell Module for Industrial Weighing Solution

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Modül SWC515 SS 100T tart

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	220.000 lb (100.000 kg)
Malzeme:	Paslanmaz Çelik, Sınıf 304	metroloji:	OIML C3, NTEP IIIL 10.000
Yük hücresi:	0782/gd	Doğruluk:	Standart
Koruma derecesi:	IP68/69K	Çevre / Malzeme:	Yıkama / paslanmaz çelik
Tehlikeli onay:	ATEX, FM	Kritiklik:	Standart
kablo:	42.5 ft (13 m)
Vurgulamak:	100 ton stainless steel load cell , SWC415 industrial weighing module , Mettler Toledo load cell with warranty

100 Ton SWC415 PM Stainless Steel Load Cell Module for Industrial Weighing Solution

Cost Efficient

Weigh module is designed for economic applications with highly accurate, fully approved stainless load cells suitable for many industrial applications.

Safety & Protection

Features 360-degree self-checking, dual lift-off protection, hazardous approvals, and an IP68/IP69K-protected load cell for maximum reliability.

Ease of Installation

Lightweight, low-profile design with SafeLock technology for easy alignment and rigid installation with or without the load cell installed.

Product Description

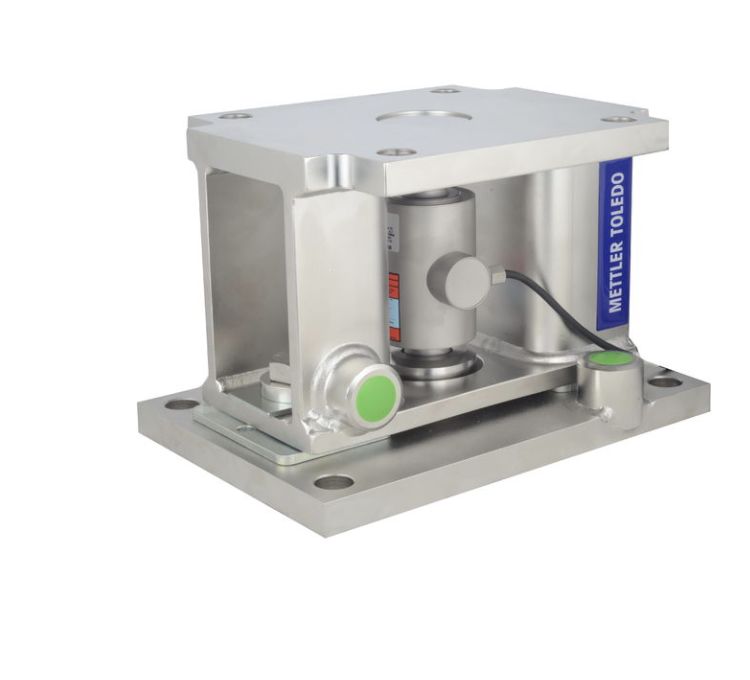

A compression weigh module designed so that its top plate and base plate compress when weight is applied. Can be attached directly to ground, piers, or structural beams. Typically used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	220,000 lb (100,000 kg)
Material	Stainless steel, grade 304
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	42.5 ft (13 m)
