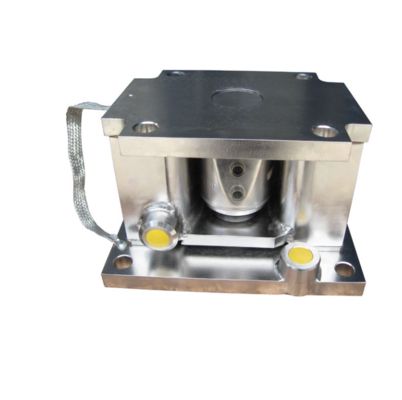

Name: SWC615 Carbon Steel PM Type Load Cell Module with 90T Capacity S3A Accuracy Grade
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modül SWC615 PM CS 90T S3A
Availability: InStock

Ana sayfa Ürünler

SWC615 Carbon Steel PM Type Load Cell Module with 90T Capacity S3A Accuracy Grade

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Modül SWC615 PM CS 90T S3A

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	198.000 lb (90.000 kg)
Malzeme:	Çinko kaplamalı çelik	metroloji:	OIML C3, NTEP IIIL 10.000 OIML C4
Yük hücresi:	PowerCell PDX	Doğruluk:	Standart
Koruma derecesi:	IP68/69K	Çevre / Malzeme:	Normal / karbon çeliği
Tehlikeli onay:	ATEX BÖLGESİ 2/22 UL Division 2	Kritiklik:	Durum izleme
Vurgulamak:	Carbon Steel PM load cell , 90T capacity load cell , S3A accuracy load cell

SWC615 Carbon Steel PM Type Load Cell Module with 90T Capacity S3A Accuracy Grade

High-Performance Compression Weigh Module

A robust compression weigh module designed for industrial applications where its top plate and base plate compress under load. Engineered for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems with capacities ranging from 3 kg to 300 tons.

Key Features

Multi-purpose Application: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: 360° self-checking, dual lift-off & down-stops, ground strap, hazardous approvals & IP68 stainless load cell protection
Predictive Diagnostics: Monitors load cells for overload, temperature changes, breach detection, and zero drift to prevent system failures

Technical Specifications

Material	Zinc plated steel (Material No: 30057238)
Maximum Capacity	198,000 lb (90,000 kg)
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX Zone 2/22, UL Division 2
Load Cell	POWERCELL PDX
Accuracy	Standard
Metrology	OIML C3, NTEP IIIL 10,000, OIML C4
