Name: SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modül SWB505 MM SS316 2.2T EN1090
Availability: InStock

Ana sayfa Ürünler

SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Modül SWB505 MM SS316 2.2T EN1090

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	5.000 lb (2.200 kg)
Malzeme:	316 Paslanmaz Çelik	metroloji:	NTEP III 5M, OIML C3
kablo:	5 milyon	Doğruluk:	Standart
Koruma derecesi:	IP68/69K	Çevre / Malzeme:	Sık yıkama / hijyenik
Tehlikeli onay:	Atex, FM, CFM	Kritiklik:	Standart
Vurgulamak:	carbon steel load cell module , 2.2 ton load cell , EN1090 compliant load cell

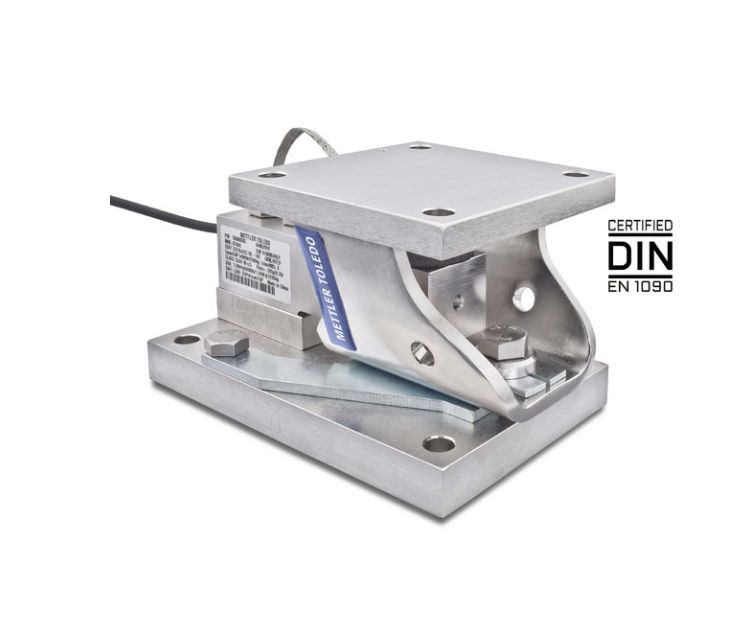

SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant

Key Features

Designed for compression weighing applications with capacities from 3 kg to 300 tons
316 Stainless steel construction for durability and corrosion resistance
IP68/69k protection rating for frequent wash-down and hygienic environments
Hazardous area approvals including ATEX, FM, and cFM
5-meter cable for flexible installation

Product Description

The SWB505 compression weigh module is engineered with carbon steel construction and a 2.2 ton capacity, compliant with EN1090 standards. Its design allows direct attachment to ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Performance Advantages

Static & Dynamic Weighing

Multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.

Safety & Protection

Features 360° checking, built-in anti-uplift and down stops, along with hazardous area approvals and IP68-rated stainless steel load cell for reliable operation.

Ease of Installation & Service

Simplified alignment for installation with easy transition to weighing mode. Requires minimal lift for load cell removal during maintenance.

Technical Specifications

Material	316 Stainless steel
Maximum Capacity	5,000 lb (2,200 kg)
Protection Rating	IP68/69k
Environment	Frequent wash-down / Hygienic
Hazardous Approvals	ATEX, FM, cFM
Cable Length	5 m
Accuracy	Standard
Metrology	NTEP III 5M, OIML C3
