Name: 1.1t SWB605 Carbon Steel Weigh Module with C3 Precision EN1090 Approved Design
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modül SWB505 SS 10kg tart
Availability: InStock

Ana sayfa Ürünler

1.1t SWB605 Carbon Steel Weigh Module with C3 Precision EN1090 Approved Design

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Modül SWB505 SS 10kg tart

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	2.500 lb (1.100 kg)
Malzeme:	Çinko kaplamalı çelik	metroloji:	OIML C3, NTEP III 5M
Doğruluk:	Standart	Koruma derecesi:	IP68/69K
Çevre / Malzeme:	Normal / karbon çeliği	Tehlikeli onay:	ATEX KAT. 3GD FM Division 2
Kritiklik:	Durum izleme
Vurgulamak:	1.1t carbon steel weigh module , SWB605 precision weigh module , EN1090 approved load cell

1.1t SWB605 Carbon Steel Weigh Module with C3 Precision EN1090 Approved Design

Economic System Integration

Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.

Product Description

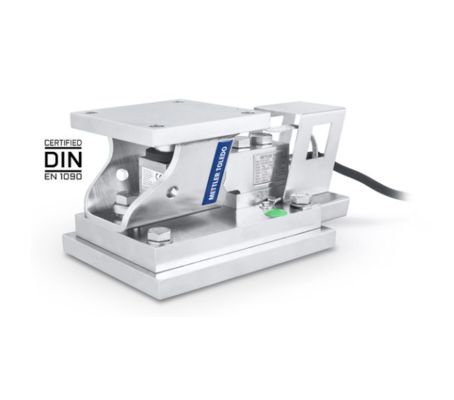

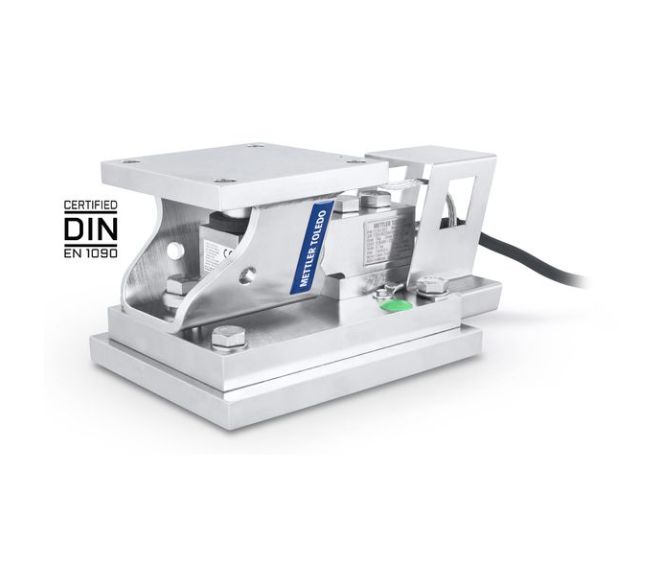

A compression weigh module designed so that its top plate and base plate compress when weight is applied. Can be attached directly to ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing.

Key Features

Static & Dynamic Weighing: Highest accuracy for both application types with self-aligning rocker pin
Safety & Protection: 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell
Easy Installation: Pre-aligned for installation with minimal lift required for load cell removal

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	2,500 lb (1,100 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP III 5M
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX Cat. 3GD FM Division 2
Criticality	Condition monitoring
