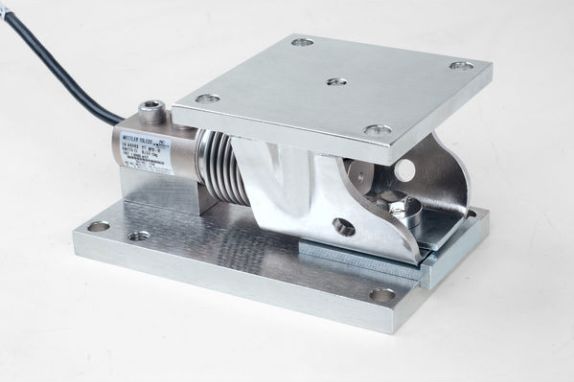

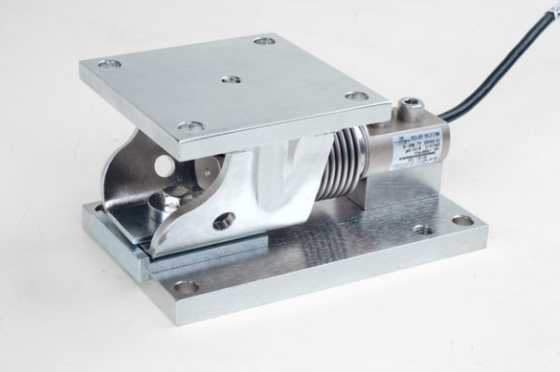

Name: SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor Industrial Grade
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modül SWB505 SS 10kg tart
Availability: InStock

Ana sayfa Ürünler

SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor Industrial Grade

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Modül SWB505 SS 10kg tart

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	22 lb (10 kg)
Malzeme:	Paslanmaz çelik V2A (AISI 304)	metroloji:	NTEP III 5M OIML C3
Yük hücresi:	MTB, 3 m kablo	Doğruluk:	Standart
Koruma derecesi:	IP68/69K	Çevre / Malzeme:	Yıkama / paslanmaz çelik
Tehlikeli onay:	Atex, FM, CFM	Kritiklik:	Standart
Vurgulamak:	10kg precision load cell , industrial grade weighing sensor , SS load cell module

SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor - Industrial Grade

Economic System Integration - Weigh Module SWB505 MultiMount Stainless Steel 10kg/22lb

Static & Dynamic Weighing

Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.

Safety & Protection

Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell for peace of mind.

Ease of Installation/Service

Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.

Product Description

A compression weigh module designed so that its top plate and base plate compress when weight is applied. Can be attached directly to the ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing. Capacities range from 3 kg to 300 tons.

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	22 lb (10 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 5M OIML C3
Load Cell	MTB, 3 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
