Name: SWB805 SS Load Cell Sensor with 550KG, 1.25K, Capacity, C3 Class Accuracy Module
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modül SWB805 SS 550kg/1.25K C3
Availability: InStock

Ana sayfa Ürünler

SWB805 SS Load Cell Sensor with 550KG, 1.25K, Capacity, C3 Class Accuracy Module

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Modül SWB805 SS 550kg/1.25K C3

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	1.250 lb (550 kg)
Malzeme:	304 paslanmaz çelik	metroloji:	OIML C3, NTEP III 5M
Yük hücresi:	SLB815	Doğruluk:	Standart
Koruma derecesi:	IP68/69K	Çevre / Malzeme:	Sık yıkama / hijyenik
Tehlikeli onay:	Atex, FM, CFM	Kritiklik:	Standart
kablo:	5 milyon
Vurgulamak:	550KG load cell sensor , SS load cell module , C3 class accuracy load cell

SWB805 SS Load Cell Sensor with 550KG, 1.25K Capacity, C3 Class Accuracy Module

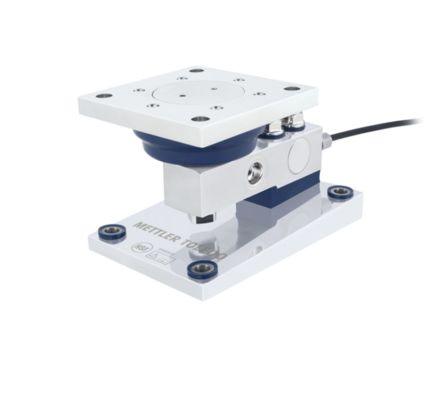

Weigh Module SWB805 MultiMount Stainless Steel 550kg/1.25k C3

Certified Hygienic Solution

Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.

Reduced Cleaning Time

Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.

Easy to integrate

Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, thus no risk of contamination.

Product Description

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells range from 3 kg to 300 tons.

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	1,250 lb (550 kg)
Material	304 Stainless steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB815
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Frequent wash-down/Hygienic
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	5 m
