SWC615-A SS 30t Load Cell Module – Corrosion Resistant Weighing Solution for Tanks

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Tartın Modül SWC615-A SS 30T

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	66.000 lb (30.000 kg)
Malzeme:	Paslanmaz çelik V2A (AISI 304)	metroloji:	OIML C3, NTEP IIIL 10.000
Yük hücresi:	PowerCell PDX	Doğruluk:	Standart
Koruma derecesi:	IP68/69K	Çevre / Malzeme:	Yıkama / paslanmaz çelik
Tehlikeli onay:	Atex ， fm	Kritiklik:	Durum izleme
Vurgulamak:	SS 30t load cell module , corrosion resistant load cell , tank weighing load cell

SWC615-A SS 30t Load Cell Module – Corrosion Resistant Weighing Solution for Tanks

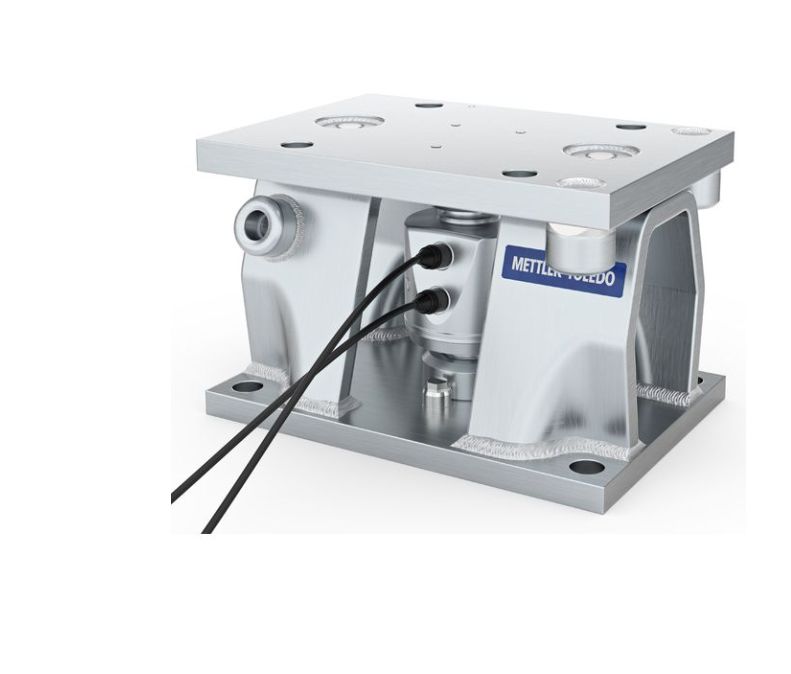

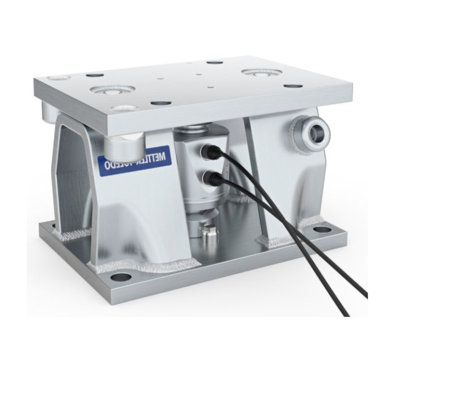

A compression weigh module designed for direct attachment to ground, piers or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper and silo weighing applications with capacities ranging from 3 kg to 300 tons.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers & conveyors with high accuracy stainless hermetic load cell

Enhanced Safety: Mechanical safety features including 360° self-checking, lift-off & down-stops protections with hazardous approvals & IP68 load cells

Condition Monitoring: Monitor single load cells for overload, temperature, zero drift to prevent system shutdowns or incorrect measurements

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66,000 lb (30,000 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
