Name: SWC515-A CS 15t Load Cell Module – Heavy-Duty Weighing Solution
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Tartın Modül SWC615-A SS 15T
Availability: InStock

Ana sayfa Ürünler

SWC515-A CS 15t Load Cell Module – Heavy-Duty Weighing Solution

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Tartın Modül SWC615-A SS 15T

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Maksimum kapasite:	33.000 lb (15.000 kg)
Malzeme:	Çinko kaplamalı çelik	metroloji:	NTEP III 5.000d OIML C3
Yük hücresi:	12 m kablo SLC611	Doğruluk:	Standart
Koruma derecesi:	IP68/69K	Çevre / Malzeme:	Normal / karbon çeliği
Tehlikeli onay:	Atex ， fm	Kritiklik:	Standart
Vurgulamak:	15t load cell module , heavy-duty weighing load cell , Mettler Toledo load cell module

SWC515-A CS 15t Load Cell Module – Heavy-Duty Weighing Solution

Product Overview

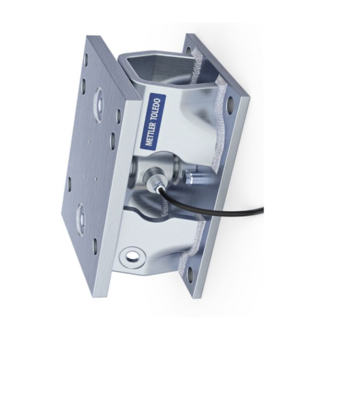

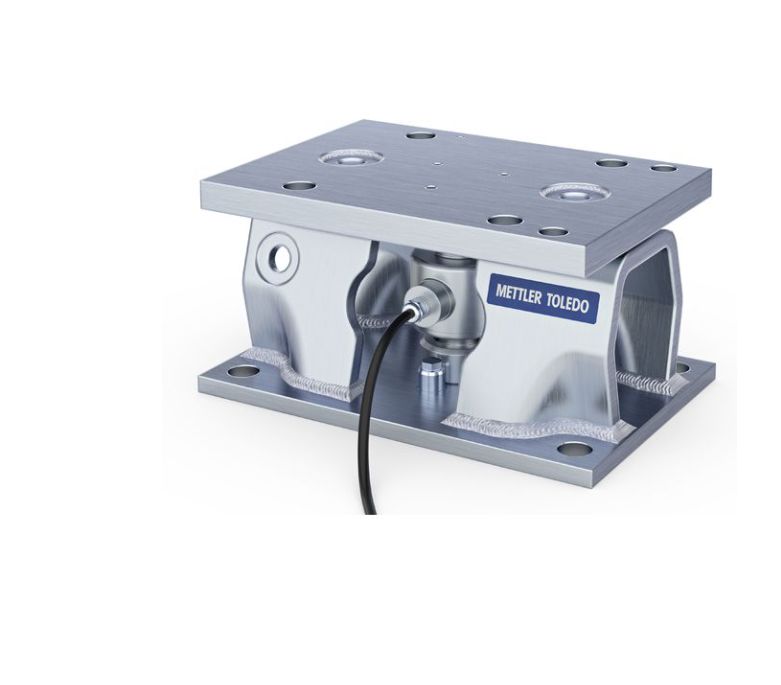

A robust compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: Features 360° self-checking, lift-off & down-stops protections, hazardous approvals, and IP68-rated load cells
Easy Installation: SafeLock™ plates prevent damage to load cells during installation with integrated space for hydraulic jack

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	33,000 lb (15,000 kg)
Material	Zinc plated steel
Metrology	NTEP III 5,000d OIML C3
Load Cell	12 m cable SLC611
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
