Name: Versatile Shear Beam and Bending Beam Sensors for Industrial Weighing Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Çok amaçlı ışın yük hücreleri
Availability: InStock

Ana sayfa Ürünler

Versatile Shear Beam and Bending Beam Sensors for Industrial Weighing Applications

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Mettler Toledo
Model numarası:	Çok amaçlı ışın yük hücreleri

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 set
Fiyat:	Pazarlık edilebilir
Ambalaj bilgileri:	karbon kutusu
Teslim süresi:	10-30 gün
Yetenek temini:	Ayda 2000 Takım

İletişim

Detaylı ürün tanımı

ürün:	Mettler Toledo yük hücresi	Bağlantı:	Birleşik
Maksimum kapasite:	22 lb (10 kg)	metroloji:	NTEP III 5.000d ， OIML C3
Koruma derecesi:	IP67	Malzeme:	Alüminyum, pasifleştirilmiş
Platform Boyutu (LXW):	400 mm x 400 mm
Vurgulamak:	shear beam load cell for industrial weighing , bending beam sensor with warranty , Mettler Toledo load cell sensors

Versatile Shear Beam and Bending Beam Sensors for Industrial Weighing Applications

Attribute	Value
Product	Mettler Toledo Load Cell
Connectivity	Integrated
Maximum Capacity	22 lb (10 kg)
Metrology	NTEP III 5,000d, OIML C3
Protection Rating	IP67
Material	Aluminum, passivated
Platform Size (LxW)	400 mm x 400 mm

Convert Any Structure into a Weighing Scale

Multipurpose beam load cells can be selected to suit your accuracy requirements with global approvals such as OIML, NTEP, ATEX, and FM provided as standard; thus the load cells can be used globally in legal-for-trade and Ex weighing systems. The durable, IP68/IP69k-rated designs and full set of approvals enable versatility and safety in a broad range of applications. Available capacities range from 5 kilograms to 4.4 tons, allowing you to weigh anything from small vessels to large tanks.

Ingress Protection to Withstand Washdown

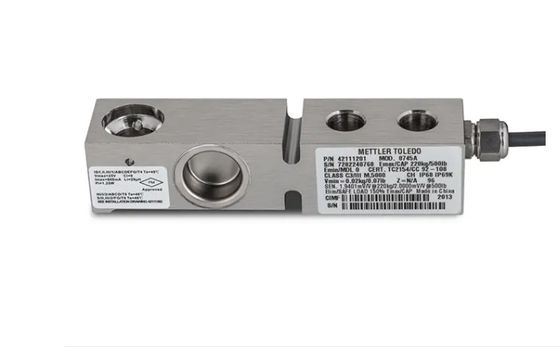

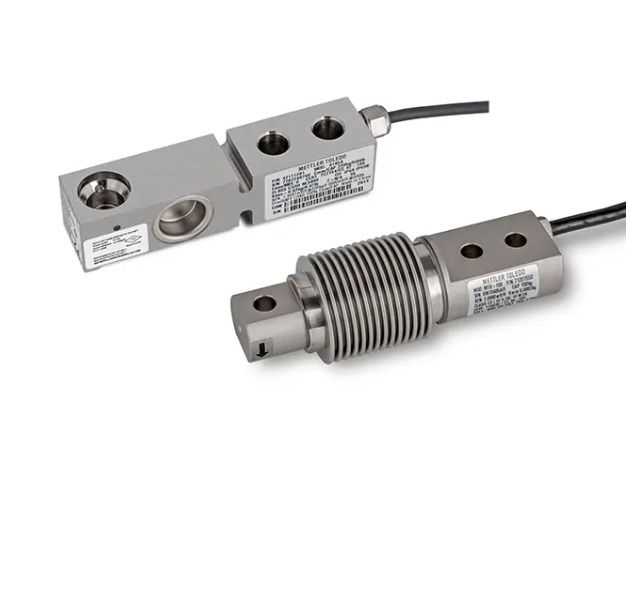

Due to the hermetically sealed (welded) design, the MTB and 0745A multipurpose load cells are ideal for harsh environments in process, food, and pharma applications. The IP68/IP69K protection class is suited to withstand washdown applications.

Accessories

A wide range of accessories are available for load cells including base plates and load introductions for coping with shock and vibration.

The Foot Kit (FKT) can be used for convenience in floor scale applications with MTB, 0745A, and SLB515 load cells:

Rocker-pin load introduction for high accuracy
Copes with deck deflection
Height adjustable
Replaceable rubber pad
Slight shock / vibration damping function

The Expansion and Vibration Kit (EVK) can be used for top mounting applications with 0745A and SLB515 load cells. It is a cost-effective solution but without any restraint/safety features. It has a low profile for direct integration into your weighing system.

Specifications

Material: Aluminum, passivated

Maximum Capacity: 22 lb (10 kg)

Metrology: NTEP III 5,000d, OIML C3

Protection Rating: IP67

Connectivity: Integrated

Platform Size (LxW): 400 mm x 400 mm
